The Beat-Sonic CS6EP is a front camera interface designed for select 2014-2020 Toyota models with factory display screens. This interface allows you to add a front camera to your factory screen while keeping your factory backup camera fully functional.
Front camera is not included and must be purchased separately. This product is the interface module only.
The CS6EP allows you to switch between the front camera, rear camera, and factory Toyota screen using the included selector switch. It is ideal for front parking, avoiding curbs, avoiding front obstacles, and assisting vehicles with front spoilers or lowered suspension.
Why choose the CS6EP front camera interface?
Adding a front camera to a compatible Toyota factory screen requires the correct interface. The CS6EP provides a plug-and-play solution that integrates a front camera into the factory display without modifying the factory harness.
By pressing the selector button, the front or rear camera can be displayed for a preset amount of time using the built-in programmable timer. The timer can be set to 5 seconds, 10 seconds, 15 seconds, 20 seconds, or timer disabled for push-on / push-off operation.
The front camera can also be programmed to automatically display at speeds under 9 mph to assist with front parking and low-speed maneuvering.
Key features
- Adds front camera connectivity to select Toyota factory screens
- Switch between front camera, rear camera, and factory Toyota screen
- Front camera can automatically display at speeds under 9 mph
- Built-in programmable timer: 5 sec, 10 sec, 15 sec, 20 sec, or timer disabled
- Allows reverse camera viewing at any time while driving
- Press selector switch at any time to display the front camera
- Ideal for avoiding front obstacles, curbs, tight parking spaces, and steep driveways
- Helpful for vehicles with front spoilers or lowered suspension

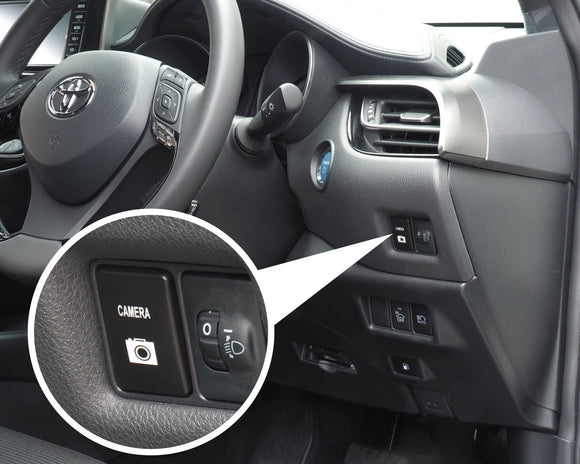

- OE-design switch with white LED fits into a vacant switch blank
- Plug-and-play installation with no modification to the factory harness
- Works together with the factory backup camera
Recommended front cameras
For standard factory front grille equipped Toyota models, the following front cameras are recommended:
- BCAM10AW - white front license plate mounting-type camera
- BCAM11B - black front grille mounting-type camera
- BCAM13 - black front flat mounting-type camera
Note: Front camera is sold separately.
Important navigation note
For factory navigation equipped models, the cursor indicating direction will be temporarily interrupted while the CS6EP is engaged. The current position will be recalibrated and the cursor will indicate the vehicle location once the CS6EP is turned off by pressing the supplied button.
Compatible vehicles
The CS6EP is compatible with the following Toyota vehicles:
- 2014-2019 Toyota 4Runner
- 2017-2018 Toyota 86
- 2015-2018 Toyota Avalon
- 2014-2017 Toyota Camry
- 2014-2018 Toyota Corolla
- 2014-2019 Toyota Highlander - not compatible with panoramic view equipped models
- 2016-2019 Toyota Prius with 7-inch screen and navigation
- 2016-2018 Toyota Prius c
- 2016-2017 Toyota Prius v
- 2017-2019 Toyota Prius Prime with 7-inch screen and navigation
- 2014-2018 Toyota RAV4
- 2014-2019 Toyota Sequoia
- 2014-2019 Toyota Tacoma
- 2014-2019 Toyota Tundra
- 2014-2018 Toyota Yaris
Not sure if this fits your Toyota? Email info@beatsonicusa.com with your year, model, trim, and factory screen/navigation information before purchasing.
Specifications
- Voltage: DC11V-15V
- Current consumption: 50mA or less
- External dimensions: 40mm x 25mm x 57mm
- Weight: 55g
