The Beat-Sonic BCAM11B is a universal front-view camera designed to mount directly onto your front grille - giving you a wide 160-degree fisheye view of what's ahead when parking or navigating tight spaces. Made in Japan, built to IP67 waterproof standards, and finished in black to blend seamlessly with your factory grille for a clean, stealth look.
Compatible with any front camera interface that accepts an RCA video input, including the Beat-Sonic CS10B front camera interface and Beat-Sonic CS15 front camera interface.
Professional local installation available in La Mirada, Southern California. Contact us at info@beatsonicusa.com to book.
Key features
- 160-degree wide-angle fisheye lens - 160 degrees horizontal, 120 degrees vertical for maximum front visibility
- Automatic electronic iris - self-adjusts for optimal visibility in both day and night conditions
- Stealth black finish - blends into your factory front grille for a clean, factory-integrated appearance
- IP67 waterproof construction - fully sealed against dust and water for long-term durability
- Extra-long RCA video cable harness - provides enough reach for a clean installation without splicing additional cable

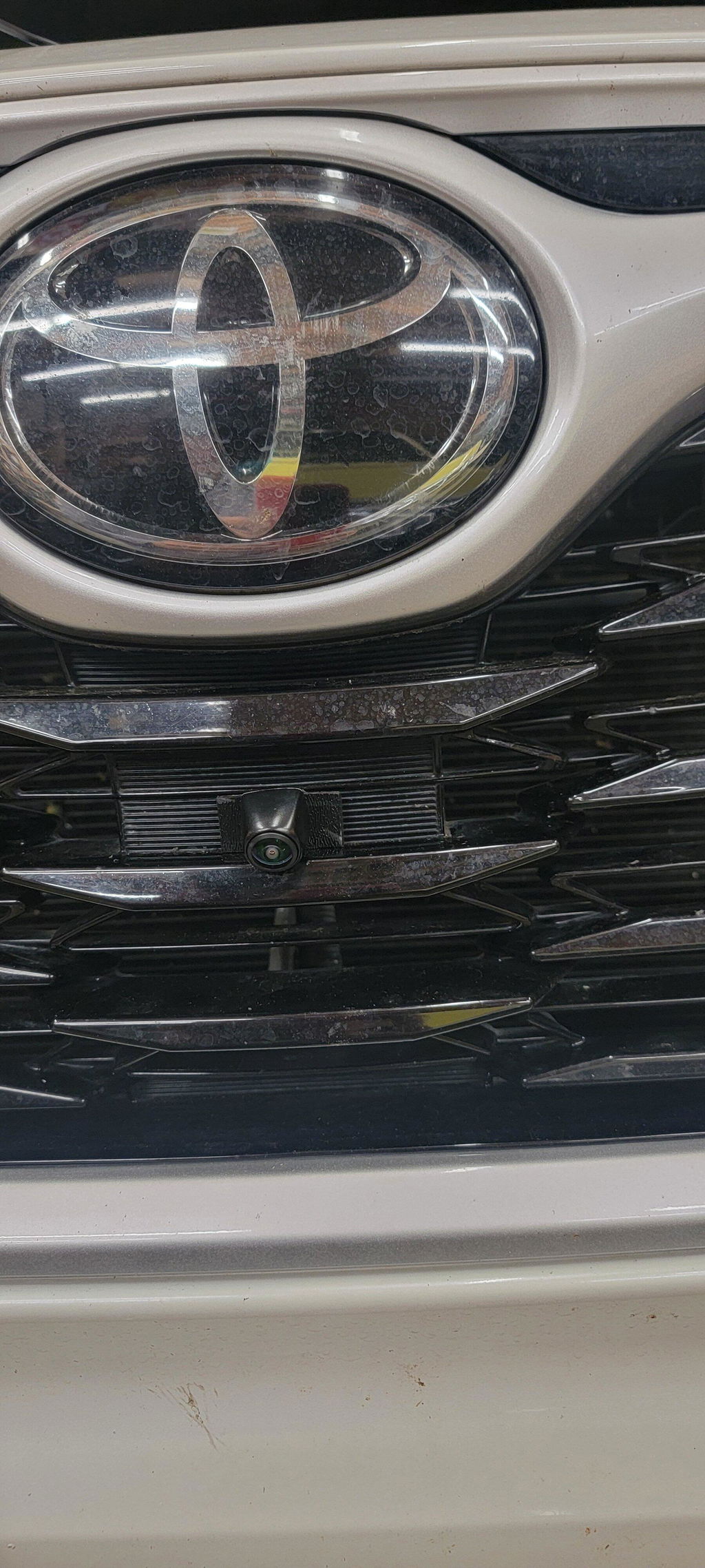

- Screws directly onto front grille - no special tools required, straightforward installation
- Made in Japan - Beat-Sonic quality construction and components
- Universal application - compatible with any front camera interface that accepts RCA video input
Specifications
| Power supply | DC 12V |
| Consumption current | 55 +/- 5mA |
| Image sensor | 1/4 inch color CMOS sensor |
| Pixels | 640 x 480 |
| Angle of view | Horizontal 160 degrees, Vertical 120 degrees |
| Image direction | Orthographic |
| Minimum illumination | 1 Lux |
| Video output | NTSC (RCA pin) 1Vpp (75Ω) |
| S/N ratio | 48dB or more |
| Waterproof rating | IP67 |
| Operating temperature | -10°C to 50°C |
| Camera body dimensions | 20 (W) x 23 (H) x 25.5 (D) mm |
| External dimensions | 19.5 (W) x 37 (H) x 45 (D) mm |
| Weight | 40g |
| Parking guidelines | None |
| Origin | Made in Japan |
What's in the box
- 1 x Camera body
- 1 x Power supply and image output cable
- 1 x M6 nut
- 1 x Metal washer
- 1 x Spring washer
- Fiber washers
Frequently asked questions
Do I need a front camera interface to use this?
Yes. The BCAM11B is a camera only - it does not include a front camera interface. To display the front camera view on your factory screen, you will also need a compatible front camera interface such as the Beat-Sonic CS10B.
Is there a white version available?
Yes. The Beat-Sonic BCAM10AW is available in white and mounts to the front license plate bracket instead of the grille.
Does it work at night?
Yes. The automatic electronic iris adjusts for both day and night conditions, with a minimum illumination rating of 1 Lux.
Is it waterproof?
Yes. The BCAM11B carries an IP67 waterproof rating - fully sealed against dust and water exposure.
Does this ship to Canada or internationally?
Yes. We ship to Canada and Mexico.
