Plug & Play Tweeter Resistor Kit for Toyota Factory Dash Speakers - Beat-Sonic USA NS-HS01

The Norix Audio™ NS-HS01 is a plug-and-play tweeter resistor kit designed for Toyota owners who have installed aftermarket dash or tweeter speakers and find the high frequencies too harsh or bright. By adding 4 ohms of resistance inline with each tweeter, the NS-HS01 tames the highs and smooths out the overall sound without any cutting, splicing, or permanent wiring changes.

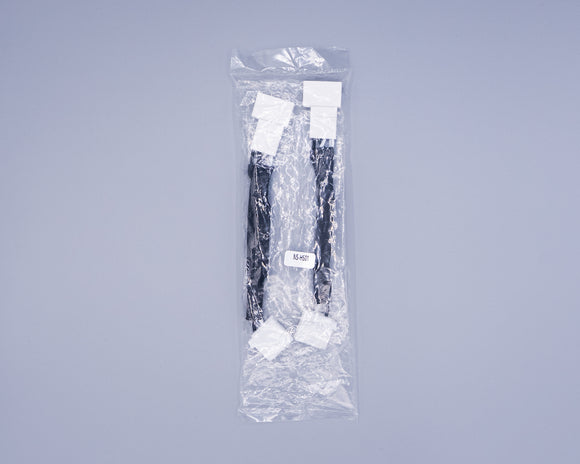

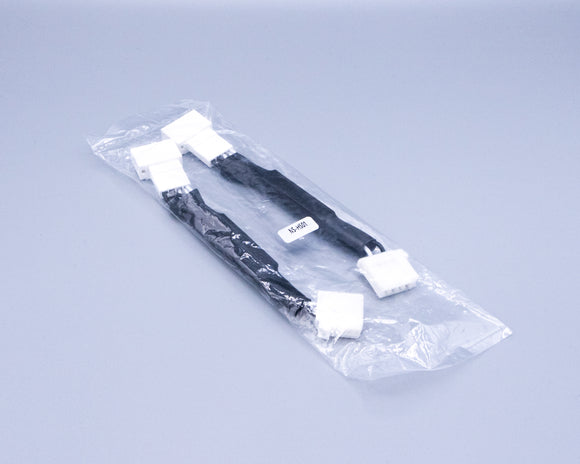

Comes as a pair - one resistor for the driver side and one for the passenger side.

Professional local installation available in La Mirada, Southern California. Contact us at info@beatsonicusa.com to book.

The problem it solves

When installing aftermarket dash or tweeter speakers into a Toyota, the factory amplifier output level is often optimized for the impedance of the original OEM speakers. Aftermarket speakers - especially tweeters - can produce highs that sound overly bright, sharp, or fatiguing in this setup. Rather than returning to the stock speakers or adding a complex crossover, the NS-HS01 provides a simple, reversible fix: plug it in between the factory harness and your new speakers, and the added resistance softens the high-frequency output to a more balanced level.

Key features

• 4 ohm inline resistance - reduces tweeter output level to tame harsh or overly bright highs

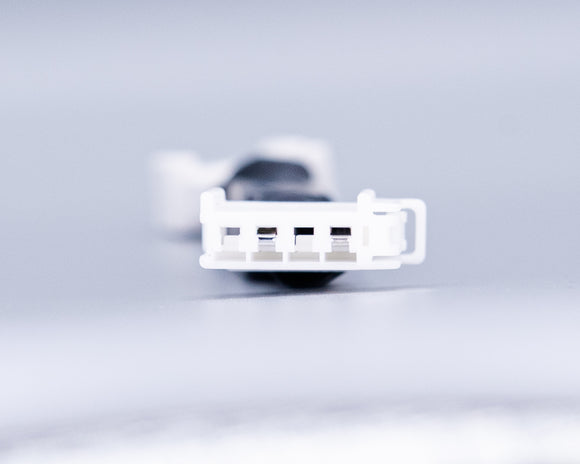

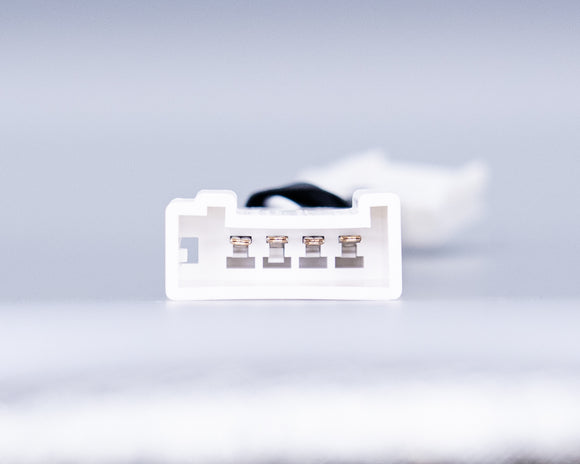

• Plug-and-play design - uses male and female factory Toyota connectors, no cutting or splicing required
• Sold as a pair - includes one resistor for each side (driver and passenger)
• Fully reversible - unplug at any time to return to original configuration
• Made for Toyota factory dash and tweeter speaker locations

Specifications

Compatible vehicles

The Beat-Sonic NS-HS01 is compatible with the following vehicles:

Not sure if this fits your vehicle? Email info@beatsonicusa.com with your year, make, and model before purchasing.

Frequently asked questions

Will this damage my amplifier or speakers?
No. Adding resistance inline with a tweeter is a well-established technique for reducing output level. It does not damage the amplifier or the speaker. The resistor must be mounted to a metal or other non-flammable surface - not enclosed in foam or tape - and kept clear of wire insulation and trim materials.

Will this affect bass or midrange frequencies?
No. The NS-HS01 is wired inline with the tweeter or dash speaker only and has no effect on your woofers or midrange drivers.

Do I need one or two?
The NS-HS01 comes as a pair, so you receive one resistor for each side. No need to purchase separately.

Is installation reversible?
Yes. The plug-and-play connectors allow you to remove the resistors at any time and return to your previous configuration with no trace left behind.

Does this ship to Canada or internationally?
Yes. We ship to Canada and Mexico.
