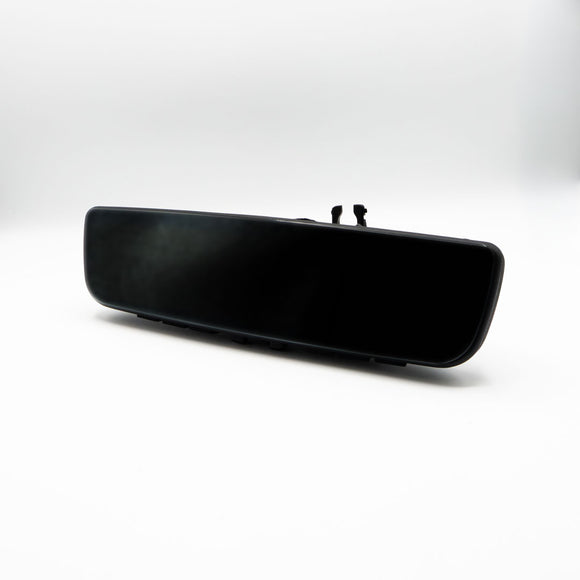

The Beat-Sonic USA Digital Rearview E-Mirror replaces the factory rearview mirror on the 2010-2023 Lexus GX 460 with a 9.2 inch full-width display fed by a dedicated rear camera. You see what is behind the vehicle even when the third row is up, passengers are seated, or cargo is stacked to the roof. A 3-button garage door opener is built into the mirror, so the remote stays in the same spot your hand already reaches for.
The camera sends a 60 frames per second digital LVDS signal, the same type of connection used by factory digital mirrors. Motion stays smooth at highway speed and the delay from camera to screen is 55ms or less. When the display is off, the mirror works as a normal reflective mirror.
Professional local installation available in La Mirada, Southern California. Contact us at info@beatsonicusa.com to book.
Key features

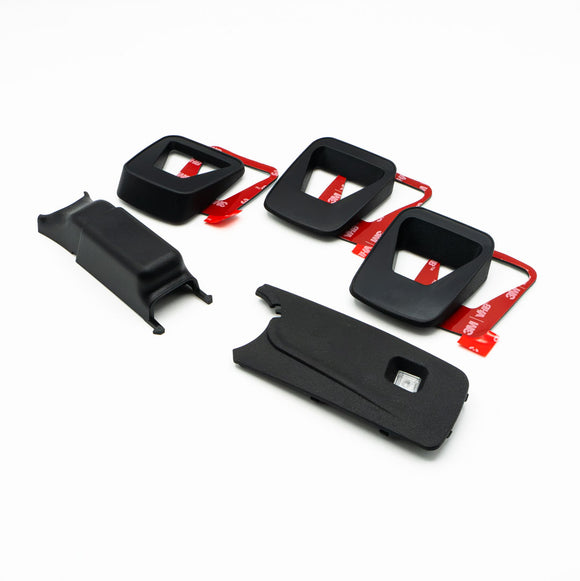

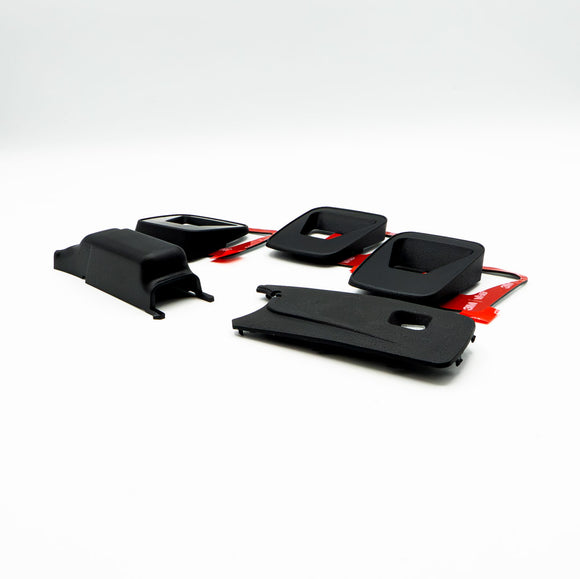

- Built for the Lexus GX 460 - vehicle-specific bracket mounts in the factory mirror position, not a universal strap-on screen
- Integrated garage door opener - 3-button transmitter built into the mirror, 300-400MHz, works with most North American openers including rolling-code systems. No separate fob and no extra wiring
- 60fps LVDS digital video - smooth, sharp rear view with no blur when the vehicle is moving
- 9.2 inch IPS display, 1920 x 384 - rated at 5,000 cd/m² so it stays readable in direct sunlight and dims for night driving

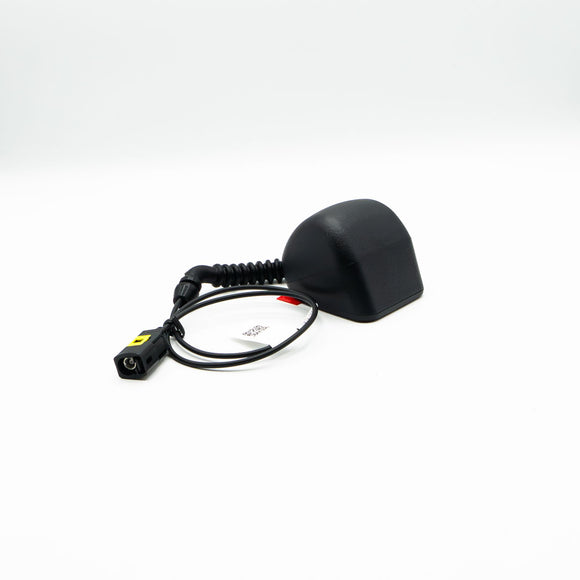

- Automotive-grade Sony IMX camera sensor - IP69K rated against water and dust
- Fast start - display is on in 1 second or less after power-up

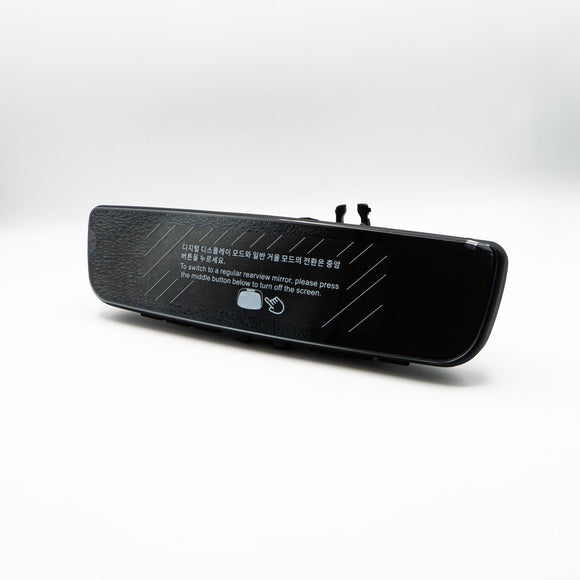

- Reflective mirror backup - normal mirror view is always available when the screen is off
- Display only - this model does not record. No dash cam or DVR function is included
Specifications
| Display | |
|---|---|
| Screen size | 9.2 inches |
| Panel type | TFT LCD (IPS) |
| Resolution | 1920 x 384 |
| Brightness | 5,000 cd/m² |
| Signal latency | 55ms or less |
| Boot time | 1 second or less |
| Camera | |
| Sensor | Sony IMX automotive |
| Video signal | LVDS, 60fps |
| Waterproof rating | IP69K |
| Garage door opener | |
| Frequency | 300-400MHz |
| Buttons | 3 |
| Compatibility | LiftMaster, Chamberlain, Genie, Overhead Door, Craftsman and most openers built after 1993, rolling code supported |
| Electrical and environmental | |
| Input voltage | DC 9V-16V |
| Operating temperature | -40°C to +85°C |
| Recording / dash cam | Not included |
| Warranty | 3 year limited |
Compatible vehicles
Show all compatible vehicles â–¼
| Make | Model | Years |
|---|---|---|
| Lexus | GX 460 | 2010-2023 |
Not sure if this fits your GX? Email info@beatsonicusa.com with your year before purchasing.
Installation notes

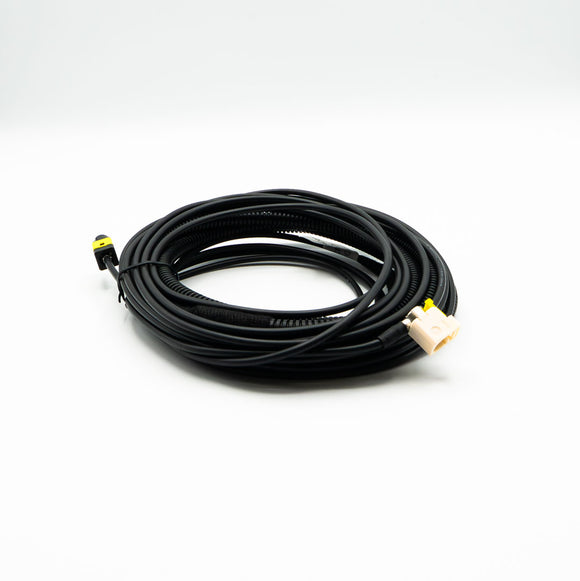

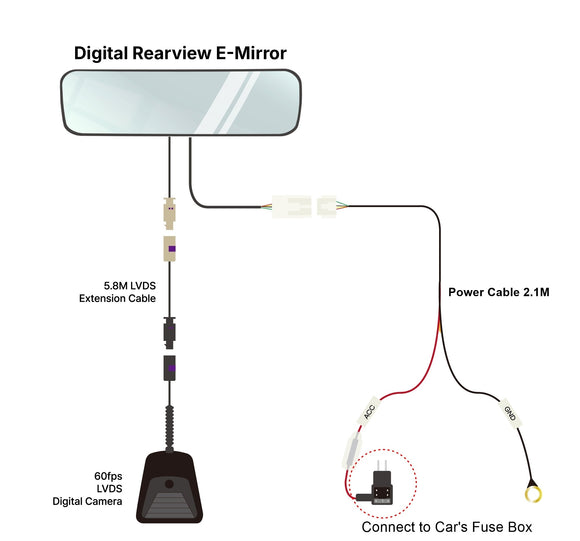

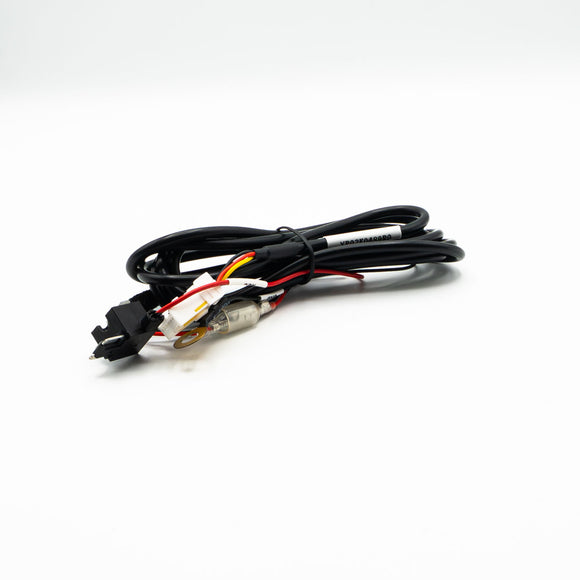

We recommend installation by a qualified 12-volt technician. The camera uses a high-speed digital LVDS cable, so it must not be pinched, crushed or sharply bent during routing. Coil any extra cable in a loose loop instead of folding it, confirm a stable power source with a multimeter before connecting, and check the camera angle on the display before the final mount.
Frequently asked questions
Which garage door openers does it work with?
Most North American openers on 300-400MHz, including LiftMaster, Chamberlain, Genie, Overhead Door and Craftsman. Rolling-code systems are supported.
Does the garage door opener need separate wiring?
No. The transmitter is built into the mirror. There is no separate fob or external antenna.
Does it still work as a mirror when the screen is off?
Yes. The reflective mirror is always available, so you never lose rear visibility.
Does it record like a dash cam?
No. This model is display only and does not record video.
Do I need professional installation?
We strongly recommend it. The video cable and power connections need automotive electrical experience. Local installation is available at our La Mirada, CA facility.
What warranty does it come with?
A 3 year limited warranty from Beat-Sonic USA.
Does this ship to Canada or internationally?
Yes. We ship to Canada and Mexico.
