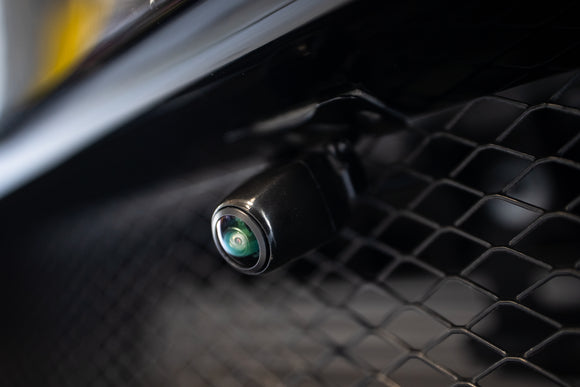

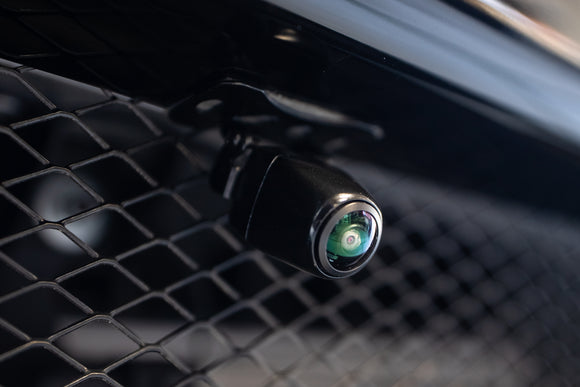

Discretely add a wide-angle, 160 degrees fisheye front view camera that blends in with your front grill
Features:

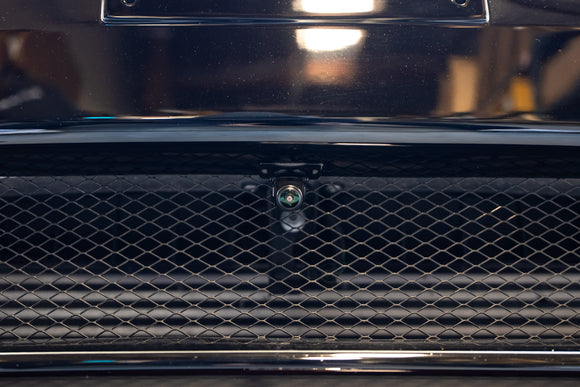

- The camera can be directly mounted to the front grill using screws. Alternatively, double-sided tape mounting is available, and an adjustable angle bracket is included for flexible positioning.
- Wide-angle lens (160 degrees) to ensure a wider visibility.

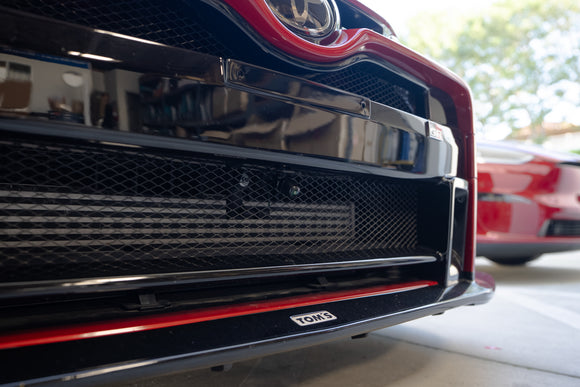

- Black color to blend in with your front grill for the stealth look.
- Durable, waterproof construction with an IP67 rating.
- Extra long video RCA cable harness for a longer reach

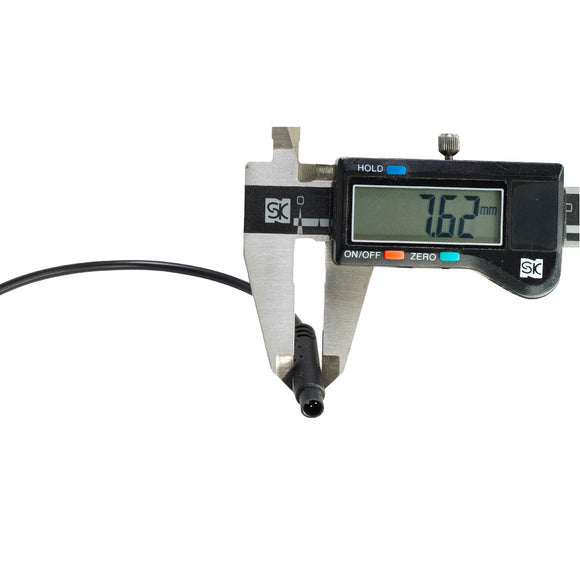

- New harness with extra-small intermediate joining connectors for easier installation.
Compatibility:
Universal application
Specifications:
- Power supply: DC12v
- Consumption current: 55 ± 5 mA
- Image direction: Front View
- Image sensor: ¼ inch color CMOS sensor
- Parking guidelines: None
- Pixels: 640 x 480 - 31 megapixels
- Size: 20（W）ｘ23（H）ｘ25.5（D）mm [Camera only without bracket]
- Minimum illumination: 1 Lux
- Angle of view: horizontal: 160 degrees, vertical: 120 degrees
- Video output: NTSC (RCA pin) 1Vpp (75Ω)
- Operating temperature range: -10℃ to 50℃
- Waterproof Rating: IP67
- Weight: 40g excluding harness
- S/N: 48 dB or more
- External dimensions: 19.5 (W) x 37 (H) x 45 (D) mm
Included in this kit:
- 1 x Camera body
-

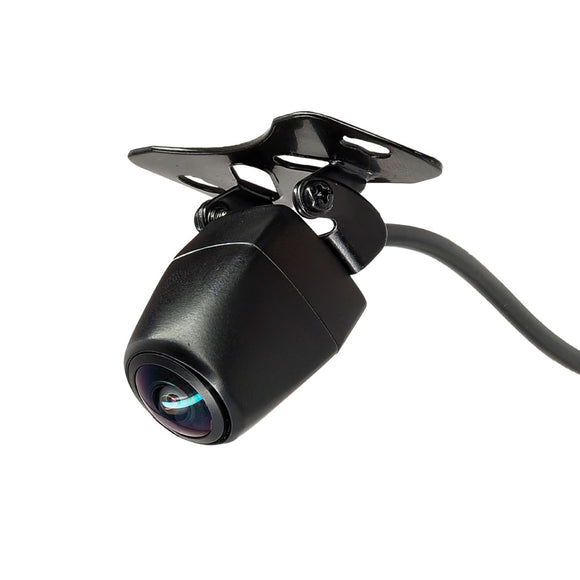

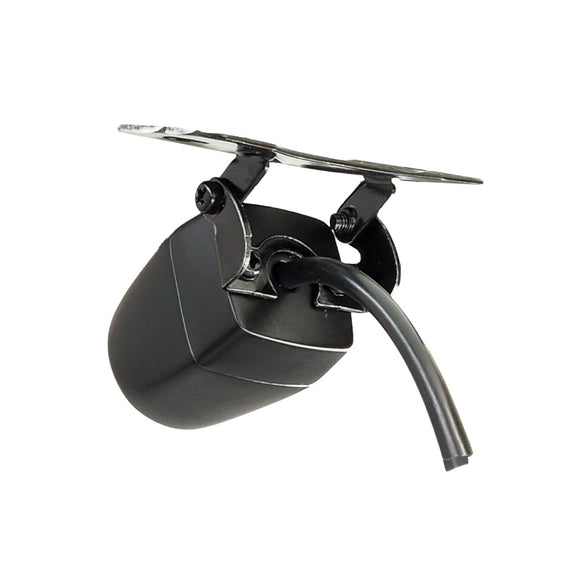

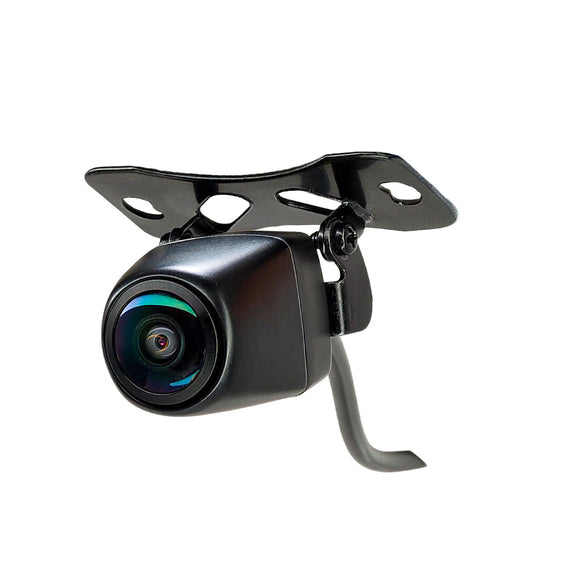

1 x Front camera with adjustable mounting bracket
-
1 x Extension cable
-
1 x Power / video cable
-
1 x 3M double-sided tape
-
1 x Alcohol cleaning wipe
