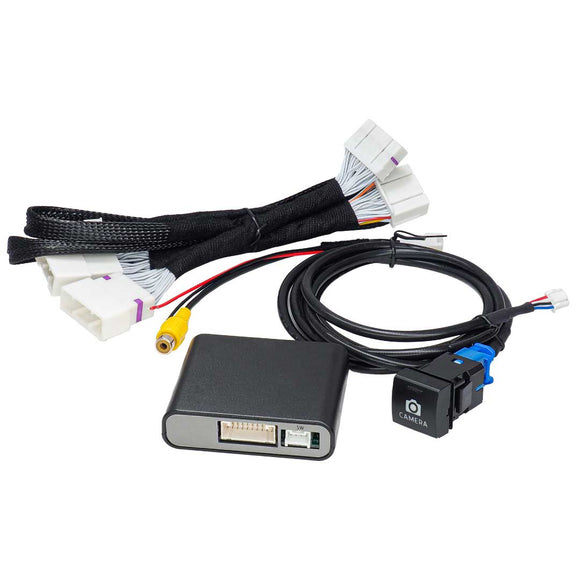

Beat-Sonic CS15 Front Camera Interface for Select 2022+ Toyota Models

Integrate a front camera to display on your factory screen and work together with your backup camera (this product does not include the front camera. It is sold separately.)

Front camera connectivity for select 2022+ Toyota models

By pressing the selector button, the front or the rear camera is displayed for the duration pre-set using the inbuilt programmable timer. The timer is programmable for 5 sec, 10 sec, 15 sec, 20 sec or timer disable (i.e. push on / push off). In addition, the front camera can be programmed to automatically display at speeds less than 9mph to assist when front parking.

Recommended Front Cameras:

 [For standard factory front grill equipped Toyota models]
1. BCAM10W (White / Front license plate mounting-type)
2. BCAM11A (Black / Front grill mounting-type)


Features:

• Ability to switch between front camera, rear camera, and factory Toyota screen
• Ideal for avoiding front obstacles especially for vehicles with front spoilers and/or lowered suspension
• Makes front parking in tight places a breeze
• Ability to view reverse camera at any time while driving
• Press selector switch at any time to display front camera
• OE design switch with white LED fits perfectly into vacant switch blank
• Plug and Play installation with no modification to the factory harness. (does not include Front Camera sold separately)

Specifications:

• Voltage: DC11V ~ 15V
• Current consumption:  less than 100mA (excluding camera)
• External dimensions: 70 x 19 x 61mm  (main unit)
• Weight: 38g (main unit)
• Selector Switch Cable Length: 1.8m


Compatibility:

• 2025-2026 Toyota 4Runner with 8" display screen only
• 2025-2026 Toyota Camry with 8" or 12.3" display screen
• 2023-2026 Toyota Corolla / GR Corolla with 8" display screen
• 2024-2026 Toyota Grand Highlander with 12.3" display screen
• 2023-2026 Toyota Highlander with 8" or 12.3" display screen
• 2024-2026 Toyota Land Cruiser with 8" or 12.3" display screen
• 2023-2026 Toyota Prius with 8" or 12.3" display screen
• 2023-2025 Toyota RAV4 with 8" or 12.5" display screen
• 2025-2026 Toyota Sienna with 8" or 12.3" display screen
• 2023-2026 Toyota Sequoia with 8" display screen only
• 2024-2026 Toyota Tacoma with 8" display screen only
• 2022-2026 Toyota Tundra with with 8" display screen only

Troubleshooting Video: front Camera Interface

FAQ:

Does this come with a front camera?

This kit does not include the front camera and must be purchased separately. We recommend our BCAM11A camera

Is this compatible with my vehicle?

Please check the product information as it details out the compatible vehicles. Any vehicles listed are not compatible.

Does the backup camera function normally after installing this kit?

Yes, the backup camera will function normally and reverse camera will display when you put your vehicle into reverse gear

What happens when you put the vehicle into reverse gear while the front camera is showing?

The backup camera will display. Backup camera always take priority when the reverse gear is engaged

Can you record videos from these front and rear cameras?

Theoretically yes, but will not be ideal with this system. 2 channel dash cam will achieve this, and we currently do not offer dash cams on our website.
